首页 >> 产品中心 >>硅胶发热膜 >>医疗设备 >> 柔性硅胶发热片 120*250 300*410*1.5mm规格定制电热膜硅胶发热片
详细说明

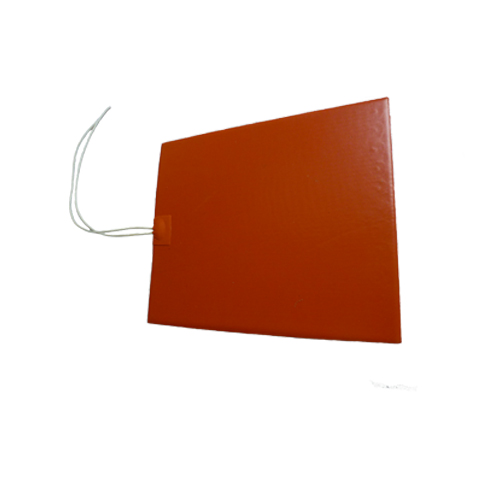

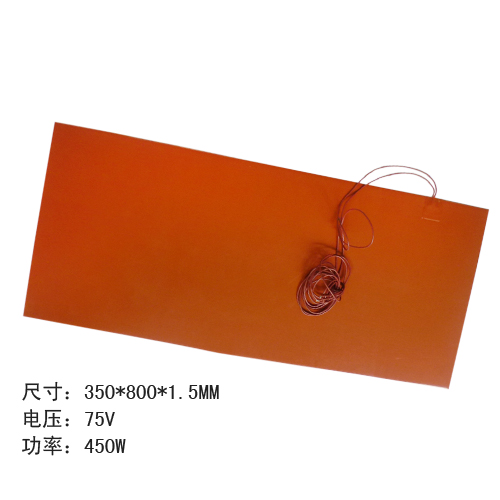

柔性硅胶发热片 120*250 300*410*1.5mm规格定制电热膜硅胶发热片

收藏
产品编号 5421
  • 商品说明

硅橡胶加热片

联系电话;钱先生 15818563578/18124776280

      通常情况使用0.4~0.8W/cm2这个范围。不过,因为根据发热片安装和温度调节情况的不同会有所变化,所以在选用时请和本公司联系。 技术参数
1、绝缘材料最高耐温: 250 ℃
2、最高使用温度: 250 ℃
3、绝缘电阻:≥5 MΩ
4、耐压强度: 1500v/5s
5、功率偏差:±8%
  标准型 高温型
连续温度 150℃ 250℃
最高使用温度 250℃ 280℃
尺寸 最大 宽度500mm×4000mm
 最小 宽度20mm×20mm
 厚度 常规1.5mm(最薄0.8mm,最厚4mm)
 引线长度 标准200mm
备注 表面硅橡胶 表面玻璃纤维布
  防潮规格:端面板材,简易防潮,长时间在水中或结霜处不能使用。
特别订货商品规格


联系电话:010-xxxx-xxx
